High Pressure Pulsation Dampeners

•	Designed for high-pressure applications up to 4000 PSI (276 BAR).
•	Constructed to a 4 to 1 maximum allowable working pressure safety margin.
•	Rugged 316L shell casing.
•	Heavy-duty plug top held in place by two 30,000 PSI (2069 BAR) retaining rings.
•	Available in 8 to 24 cubic inches (.13L to .39L).

Sentry XP High-Pressure Pulsation Dampeners
Available in a variety of sizes and chemically resistant materials
Request a Quote • Request Free Information

Capacities – 316L Stainless Steel High Pressure Dampeners

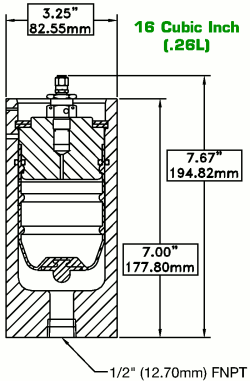

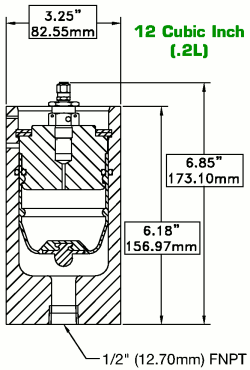

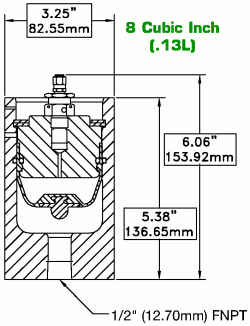

	8 CU IN (.13L)	12 CU IN (.20L)	16 CU IN (.26L)
Max. Pressure	4000 psi (276 bar)	4000 psi (276 bar)	4000 psi (276 bar)
Bladder	Model	Model	Model
Buna	XP4-08S-B50	XP4-12S-B50	XP4-16S-B50
EPDM	XP4-08S-E50	XP4-12S-E50	XP4-16S-E50
Viton	XP4-08S-V50	XP4-12S-V50	XP4-16S-V50

Capacities – Continued

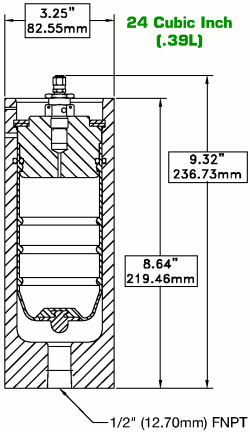

	24 CU IN (.39L)	24 CU IN (.39L)
Max. Pressure	2000 psi (138 bar)	4000 psi (276 bar)
Bladder	Model	Model
Buna	XP2-24S-B50	XP4-24S-B50
EPDM	XP2-24S-E50	XP4-24S-E50
Viton	XP2-24S-V50	XP4-24S-V50

Available with 1/2" (12.70 mm) 2500 class flange.
