Fusion Fluid Equipment Mixers & Options

Top quality mixers, made in the USA

Fusion Fluid Equipment is a rapidly growing designer, manufacturer, and supplier of mixers, mixing accessories, and complete agitation systems for various processes for use in industrial, chemical, sanitary, biotech, and pharmaceutical mixing applications.

Fusion Fluid mixers are available in ranges from from 1/10 - 600 HP, and can be configured for top-, side-, and bottom-entry. In addition to their standard mixers, Fusion offers an array of mixer lift stands, ribbon blenders, automated turnkey systems, and mixing impellers to satisfy your application's needs.

With an emphasis on American-made quality, excellent technical support, and fast lead times, Fusion provides reliable mixers backed by people who care about the success of your process. Whether you require standard or custom equipment, Fusion's modern design and manufacturing techniques allows them to confidently handle your projects ranging from simple to complex.

Fusion Fluid Equipment has a full range of fabrication capabilities to efficiently handle any custom order, including:

Pro Mixers	Direct Drive: 1/4 – 5 HP, 1150 – 1750 RPM Gear Drive: 1/4 – 5 HP, 175 – 350 RPM Batch Size: 5 to 3,000 gallons Max. Shaft Length: 120" FMB Tank Type: Open or Closed Entry Point: Top Entry Summary: Portable and Fixed Mount Mixers

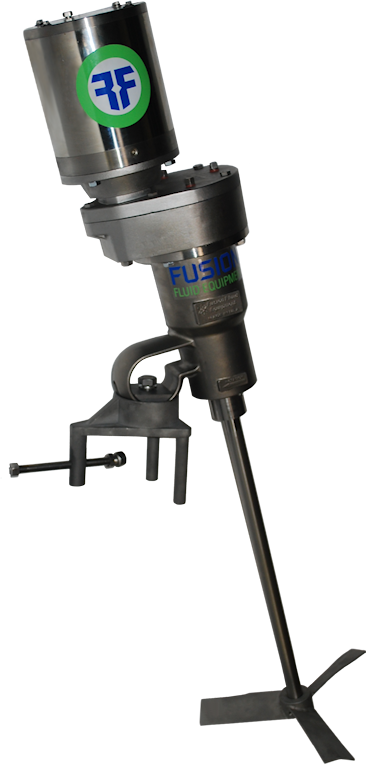

Pro Stainless Mixers	Direct Drive: 1/4 – 5 HP, 1150 – 1750 RPM Gear Drive: 1/4 – 5 HP, 175 – 350 RPM Batch Size: 5 to 3,000 gallons Max. Shaft Length: 120" FMB Tank Type: Open or Closed Entry Point: Top Entry Summary: Portable and Fixed Mount, All Stainless Steel Mixers
Axiom Mixers	Direct Drive: Ask Us Gear Drive: Up to 100 Watts, 20 – 600 RPM Batch Size: 1 to 100 gallons Max. Shaft Length: 30" FMB Tank Type: Closed Entry Point: Top Entry Summary: Autoclavable Sanitary Mixers for Small and Medium Batch Sizes
Cirrus Mixers	Direct Drive: 1/4 – 2 HP, 1150 – 1750 RPM Gear Drive: 1/4 – 2 HP, 175 – 350 RPM; 1/4 – 3/4 HP up to 350 RPM Batch Size: 5 to 1,000 gallons Max. Shaft Length: 72" FMB Tank Type: Closed Entry Point: Top Entry Summary: Heavy Duty Sanitary Mixers for Medium Size Batches
Flow Mixers	Direct Drive: N/A Gear Drive: 1/4 – 100 HP, 3 – 450 RPM Batch Size: 50 to 1,000,000 gallons Max. Shaft Length: 360" FMB (30 feet) Tank Type: Open or Closed Entry Point: Top or Side Entry Summary: Large Scale Industrial and Sanitary Gear Drive Mixers
Drum Mixers	Direct Drive: 1/2 – 3 HP, 1150 – 1750 RPM Gear Drive: 1/2 – 3 HP, 230 – 350 RPM Batch Size: 55 gallons, typically Max. Shaft Length: 30" FMB Tank Type: Open or Closed Entry Point: Top Entry Summary: Standard and Custom Drum Mixers
Tote Mixers	Direct Drive: 1/2 – 3 HP, 1150 – 1750 RPM Gear Drive: 1/2 – 3 HP, 230 – 350 RPM Batch Size: 275 to 575 gallons, typically Max. Shaft Length: 36" FMB Tank Type: Open or Closed Entry Point: Top Entry Summary: Standard and Custom Tote Mixers
Specialized Lab Mixers	Direct Drive: 1/10 – 10 HP, 870 – 3600 RPM Gear Drive: 1/10 – 10 HP, 4 – 500 RPM Batch Size: As Required Max. Shaft Length: 36" FMB Tank Type: Open or Closed Entry Point: Top Entry Summary: Custom Laboratory Mixers
