 Folding propeller positions
Tote and Bulk Mixers
Bung or Bracket Mount

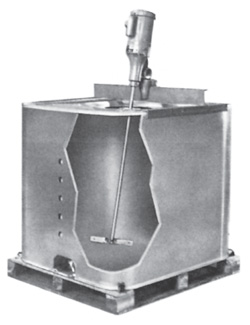

  Series DT Container Mixer (above) Universal Bracket (below)
Series DT, 420 RPM
Features:
- Mounts to the tank or optional universal bracket.
- 316SS propeller folds to fit through 2" opening; opens to 9" operating diameter.
- 35" shaft length.
| Model Number |
Standard Motor Description |
Shaft Diameter |
| Totally-Enclosed Fan-Cooled (TEFC) |
| DT-1.0 |
1/2 HP-1-115/230 |
1" |
| DT-1.2 |
1/2 HP-3-230/460 |
1" |
| DT-2.0 |
3/4 HP-1-115/230 |
1" |
| DT-2.2 |
3/4 HP-3-230/460 |
1" |
| DT-3.0 |
1 HP-3-230/460 |
1" |
| Air Motor |
| DT-1.4 |
1/2 HP AIR
Air Requirements:
20 CFM @ 40 PSI |
1" |
| DT-3.2 |
3/4 HP to 1 HP AIR
Air Requirements:
30-40 CFM @ 25-35 PSI |
1" |
| For explosion-proof models, please contact us. |

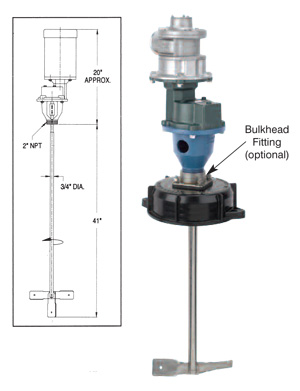

 Series HGL Mixer with Cap Mount
Series HGL, 430 RPM
Features:
- Mounts to 2" coupling or flange.
- 316SS propeller folds to fit through 2" opening; opens to 9" operating diameter.
- Second folding propeller bolts anywhere on 3/4" shaft – part #004479.
| Model Number |
Standard Motor Description |
Shaft Diameter |
| Totally-Enclosed Fan-Cooled (TEFC) |
| HGL-2.0 |
1/3 HP-1-115/230 |
3/4" |
| HGL-3.0 |
1/2 HP-1-115/230 |
3/4" |
| HGL-5.0 |
3/4 HP-1-115/230 |
3/4" |
| HGL-6.0 |
1 HP-1-115/230 |
3/4" |
| HGL-6.2 |
1 HP-3-230/460 |
3/4" |
| Air Motor |
| HGL-4.0 |
1/2 HP AIR
Air Requirements:
20 CFM @ 40 PSI |
3/4" |
| HGL-7.0 |
3/4 HP to 1 HP AIR
Air Requirements:
30-40 CFM @ 25-35 PSI |
3/4" |
| For explosion-proof models, please contact us. |

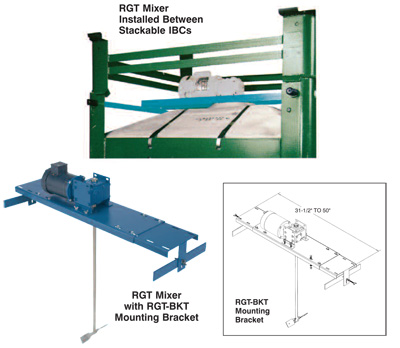

 Series RGT Mixer with options
Series RGT, 350 RPM
Features:
- Mounts to the tank or optional bracket..
- 316SS propeller folds to fit through 2" opening; opens to 9" operating diameter.
- Second folding propeller bolts anywhere on 3/4" shaft – part #004479.
- Can be used on single containers, or sandwiched between stacked semi-bulk shipping containers.
| Model Number |
Standard Motor Description |
Shaft Diameter |
| Totally-Enclosed Fan-Cooled (TEFC) |
| RGT-1.0 |
1/2 HP-1-115/230 |
3/4" |
| RGT-1.2 |
1/2 HP-3-230/460 |
3/4" |
| RGT-2.0 |
3/4 HP-1-115/230 |
3/4" |
| RGT-2.2 |
3/4 HP-1-115/230 |
3/4" |
| RGT-3.0 |
1 HP-3-230/460 |
3/4" |
| RGT-3.2 |
1 HP-3-230/460 |
3/4" |
| Air Motor |
| RGT-1.4 |
1/2 HP AIR
Air Requirements:
20 CFM @ 40 PSI |
3/4" |
| RGT-3.4 |
3/4 HP to 1 HP AIR
Air Requirements:
30-40 CFM @ 25-35 PSI |
3/4" |
| For explosion-proof models, please contact us. |
|
|
|
|
|
|
