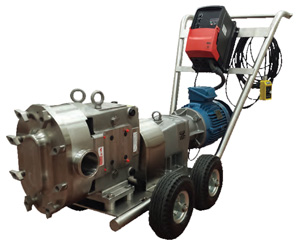

Ampco Wine and Must Cart
Ampco Wine and Must Cart
Request Free Information
Ampco Wine and Must Carts
Featuring Ampco's ZP1 Series Pump

Ampco's Wine and Must Carts are available in 4 standard model sizes and come equipped with a ZP1 Series positive displacement pump. Ampco’s ZP1 includes a 304 stainless steel gearcase, as with all Ampco positive displacement pumps. Other standard features include 316 stainless steel wetted parts, Alloy 88 non-galling rotors, single o-ring seals, a bearing protection package, and high efficiency TEFC motors with a 20:1 turndown ratio.

All carts come with 304 stainless steel construction, 10" foam-filled tires, and NEMA 4X VFD. Options are available for each model!

Standard Pump Features:

  • 316L stainless steel wetted parts with Alloy 88 non-galling rotors
  • 304 stainless steel gearcase
  • Single o-ring seals
  • Tri-clamp connections
  • Bearing protection package
  • High efficiency TEFC motors with 20:1 turndown ratio

Common Pump and Motor Options:

  • Single and double mechanical seals
  • Multiple connection options
  • Washdown and stainless steel motor enclosures
  • NEMA or IEC motor frames

Control Features:

  • NEMA 4X VFD
  • Remote speed potentiometer
  • Membrane control with digital display
  • Wash-down approved wiring, cord and plug options are available upon request

Cart Features:

  • 304 stainless steel construction
  • 10" foam-filled tires with greaseable roller bearings
  Wine & Must Cart Model Specifications
Model Inlet / Outlet Size Motor Flow / Max Pressure / Max
WC-30 1.5" 2 HP / 1.5 kW 30 gpm / 7 m³/h 60 psi / 4 bar
WC-40 2" 3 HP / 2.2 kW 40 gpm / 9 m³/h 60 psi / 4 bar
WC-60 2.5" 5 HP / 4.0 kW 70 gpm / 16 m³/h 80 psi / 5.5 bar
WC-130 3" 7.5 HP / 5.5 kW 135 gpm / 31 m³/h 80 psi / 5.5 bar
