Ohio Medical Oil-Less Scroll Air Compressors
These oil-less scroll air compressors from Ohio Medical are available in a number of configurations ideal for medical, surgical, and laboratory applications.
Features:
- Energy Efficient
- Quiet / Low Vibration
- Small Footprint
- Low Starting Torque
- Each compressor is driven by an individual motor, reducing air loss during maintenance
- Orbital bearings are field-serviceable
- Integral cooling fan

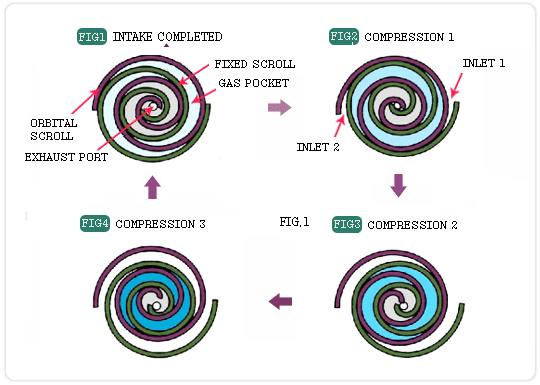

Principles of Operation:
Rotating the orbiting scroll within the stationary scroll causes a crescent-shaped compression cavity. This crescent-shaped compression cavity moves around the point of symmetry, reducing the cavity's size and exhausting the compressed air out the center of the stationary scroll.
No other technology offers fewer moving components and lower bearing loads then the scroll compressor.

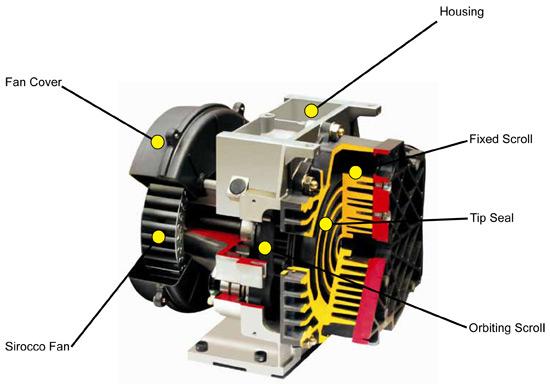

Ohio Medical Scroll Air Compressor Cutaway
Low and high pressure models fit on Ohio Medical, Powerex, and Atlas Copco systems.
Ohio Medical |
Powerex |
Scroll Air Compressor Dimensions: |
|
Dimensions |
Ohio Medical |
Powerex |
A |
Height from Base to Discharge Port |
5 ½" |
5 ½" |
B |
Height from Base to Inlet Port |
9 ¾" |
9" |
C |
Mounting Holes: Front to Back |
8 ½" |
8 ½" |
D |
Mounting Holes: Side to Side |
3 ¼" |
3 ¼" |
E |
Height from Base to Top of Shroud |
11" |
11" |
Ohio Medical |
Powerex |
|
|
