Ohio Medical Continuous On-Demand Compressed Air Systems with Dessicant Dryers
Ohio Medical offers an array of complete medical air systems
Features:
- Oil-Less Air Compressors
- NFPA 99 Compliant
- UL-listed Electrical Control Panel
- Available in Simplex, Duplex, Triplex and Quadruplex
- Tank, Base and Stack-Mounted Configurations Availble
- Medical and Labaoratory Configurations
- Warranty: 30 / 24 Months

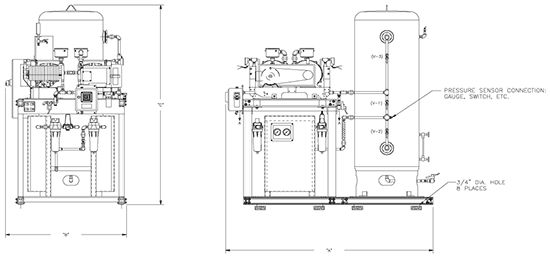

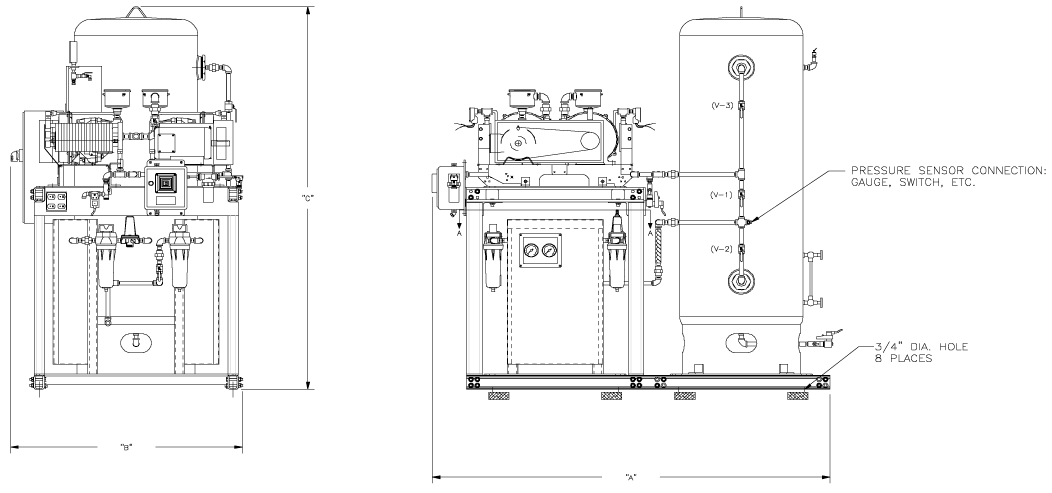

Ohio Medical Scroll Air System Dimensional Drawing (click to enlarge)
Rotary Scroll Air System Dimensions & Performance: |
Design Capacity SCFM @ 50 psig |
SCFM per Module @ 50 psig |
System Configuration |
HP per Pump |
No. of Pumps |
Length (A) |
Width (B) |
Height (C) |
System Model No. |
9.8 |
9.8 |
Tank Mounted Duplex |
3 |
2 |
74 |
32 |
71 |
AS300-T2-DD |
16.3 |
16.3 |
Tank Mounted Duplex |
5 |
2 |
74 |
32 |
71 |
AS500-T2-DD |
32.6 |
16.3 |
Tank Mounted Triplex |
5 |
3 |
84 |
64 |
72 |
AS500-T3-DD |
48.9 |
16.3 |
Stack Mounted Quadruplex |
5 |
4 |
84 |
64 |
72 |
AS500-ST4-DD |
65.2 |
16.3 |
Stack Mounted Pentaplex |
5 |
5 |
119 |
64 |
72 |
AS500-ST5-DD |
81.5 |
16.3 |
Stack Mounted Hexaplex |
5 |
6 |
116 |
64 |
72 |
AS500-ST6-DD |
97.8 |
16.3 |
Stack Mounted Heptaplex |
5 |
7 |
116 |
64 |
72 |
AS500-ST7-DD |
114.1 |
16.3 |
Stack Mounted Octoplex |
5 |
8 |
119 |
64 |
72 |
AS500-ST8-DD |
130.4 |
16.3 |
Stack Mounted Enneaplex |
5 |
9 |
155 |
64 |
72 |
AS500-ST9-DD |
146.7 |
16.3 |
Stack Mounted Decaplex |
5 |
10 |
155 |
64 |
72 |
AS500-ST10-DD |
163 |
16.3 |
Stack Mounted Hendecaplex |
5 |
11 |
155 |
64 |
72 |
AS500-ST11-DD |
179.3 |
16.3 |
Stack Mounted Dodecaplex |
5 |
12 |
155 |
64 |
72 |
AS500-ST12-DD |
Ohio Medical Rotary Scroll Air System, Tank Mounted Duplex Configuration

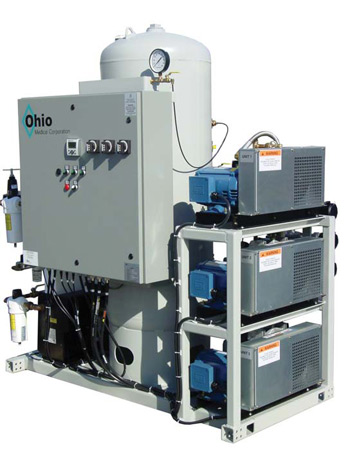

Ohio Medical Rotary Scroll Air System, Stack Mounted Hexaplex Configuration
|
|
