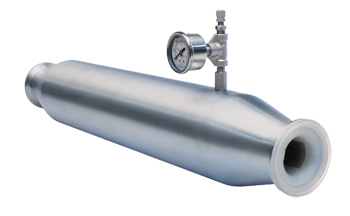

Blacoh Sentry CIP sanitary flow-through dampener
Blacoh Sentry CIP Sanitary Flow-Through Dampener
Request a Quote  •  Request Free Information
Blacoh Sentry CIP Sanitary Flow-Through Dampener

Specifically designed for hygienic clean-in-place applications:

  • Inline, flow-through design eliminates product holdup
  • Self-draining single body construction for easy clean-in-place

Unique patent-pending tube bladder:

  • Internal molded ribs prevent collapse under pressure, replacing other designs with perforated tubes that collect and trap particles
  • Molded ends connect directly to pipe and seal with Tri-Clamp fasteners – no separate gaskets required

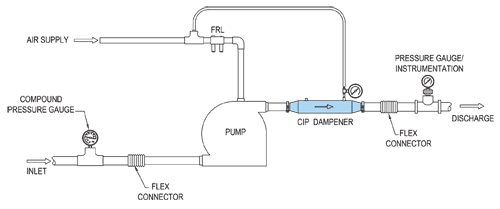

Installation diagram of Blacoh Sentry CIP dampener

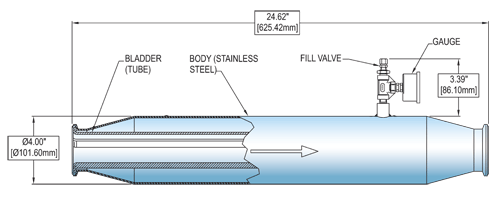

Schematic view of Blacoh Sentry CIP dampener
Cutaway view of Blacoh Sentry CIP sanitary flow-through dampener

Sentry CIP:

  • 316L polished stainless steel body with 2½" Tri-Clamp connections
  • USP Class VI pharma-grade silicone tube bladder
  • Ideally suited to handling slurries and viscous fluids
  • Gentle enough for the most delicate products
  • End cap option for mounting in vertical position

Installation:

Install the Sentry CIP santiary flow through dampener inline as close to the pump discharge as possible to absorb the pulse at its source.
