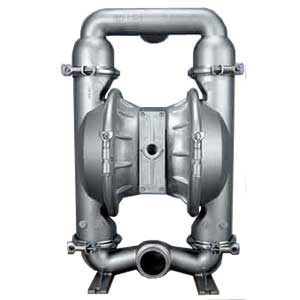

Wilden Saniflo HS 3" AODD Pump
Request Free Information
Wilden Saniflo Air-Operated Double-Diaphragm Pumps

Wilden's Saniflo pump line is specifically designed to meet the strict requirements of sanitary process applications. Saniflo pumps incorporate a straight flow-through design, large solids passage, and efficiencies to ensure process success. Saniflo pumps are constructed of passivated stainless steel, employ Tri-clamp style fittings, and are offered in various sizes and surface finishes. Saniflo pumps are also CIP (clean in place) and COP (clean out of place) capable, for ease of use and maintenance.

Saniflo pumps meet the highest standards in the industry, including EHEDG, 3A, CE, ATEX, USP Class VI, and FDA CFR 21.177. These pumps are capable of efficiently pumping a wide range of viscosities, solids, and shear-sensitive products.

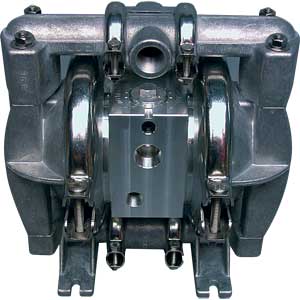

Wilden Saniflo FDA 1/2" AODD Pump

Wilden Saniflo Features:

  • Air operated (non-electrical)
  • Superior product containment
  • Bolted and clamped liquid paths
  • Self priming / dry priming
  • No damage when run dry
  • Deadhead without damage
  • Variable flow and pressure
  • High viscosity
  • Intrinsically safe by design
  • Lube-free operation
  • Shear sensitive product handling
  • Large solids passage
  • Low water requirements
  • Low product degradation
  • Ease of operation and maintenance

Wilden Saniflo FDA 1/2" AODD Pump

Wilden Saniflo Applications:

  • Sauces, Purees & Beverages
  • Poultry, Fish & Meat process
  • Fruits, Vegetables & Condiments
  • Ingredient receiving / unloading
  • Batch / load cell metering
  • Pharmaceutical products
  • Health & Personal Care products
  • Chromatography, Separation, Purification
  • High Purity product transfer
  • Filter press feed pumps
  • Acids, Solvents, Caustics & Alcohols
  • Abrasive Media & Solids
  • Chemical injections & Metering
  • Waste Water transfer
  • CIP, SIP, COP
  Saniflo Application Guide
  Saniflo FDA Pumps Saniflo Hygienic Series Pumps Saniflo HS Pharma Pumps
Sanitary Application Range High acid, high sugar, high fat food Low-acid, pasteurized, and protein-based products Bio-Pharmaceutical sterile processes
Cleaning
Method
COP COP / CIP COP, CIP / SIP
Product Examples Sweeteners, icings, juices, fruit ingredients, some sauces Milk-, meat-, egg-, and vegetable-based products, personal care products Active pharmaceutical ingredients, cosmetics, live cultures
Certifications FDA FDA, EHEDG, 3A,
USP Class VI
USP Class VI
Polish
Levels
Ra 1.3 µm (125 µ-in) Ra 0.8 µm (32 µ-in) Ra 0.4 µm (15 µ-in)

Note: Application requirements can vary depending on viscosity and operational parameters.
