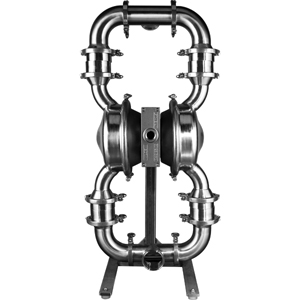

Wilden Saniflo Hygienic Series Features:

• Pro-Flo X ADS
• Sanitary & hygienic applications
• Delicate / shear sensitive product handling
• Integral piston diaphragm options
• Multiple sanitary elastomers available
• Superior product containment
• Swivel stand available
• CIP (clean in place)
• Multiple certification levels available
• Certifications: EHEDG, 3-A, ATEX, CE, USP Class VI, FDA
• Offset valve housing for easy alignment

Saniflo HS Technical Data:

• Sizes available: 25 mm (1") through 76 mm (3")
• 316L stainless steel wetted components
• Contact surfaces with Ra 0.8 µm (32 µ-in)
• Valve options: ball, mushroom, flap
• Tri-clamp style connections

Saniflo HS Performance Data:

• Max flow rate: 874 lpm (231 gpm) [Valve Ball]
• Max suction lift: 5.5 m (19.2') dry, 9.3 m (30.6') wet [Valve Ball]
• Max solid size: 76 mm (3") [Flap Valves] (not available in 25 mm (1") models)
