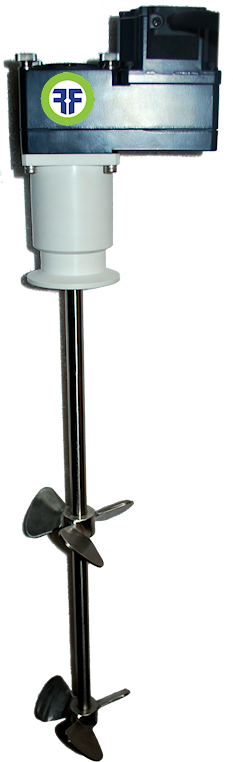

Small-Batch Autoclave Sanitary Mixers

Fusion Fluid's Axiom series of sanitary mixers are designed to meet FDA, 3A, USP-VI and BPE requirements.

Specifications:

Gear Motor: 30 – 100 Watts, 20 – 600 RPM

Batch Size: 1 to 100 gallons

Max. Shaft Length: 18" Standard; Up to 30" FMB

Tank Type: Closed

Entry Point: Top Entry

Features and Benefits:

Sanitary mixers for top entry configurations with sealed tanks.

Ultra-clean mixer design allows easy disassembly for autoclave sanitation processes. Housings have integral 2" TC mount and are standard in FDA plastic (USPVI), yet other TC adapters are available.

Electric gearmotors (IP65 and ROHS compliant) provide up to 100 watts at constant torque from 20 – 600 RPM.

Featured seal options include FDA Rulon lipseals (USPVI) or carbon/ceramic/Viton mechanical seals.

Shafts and impellers are standard in 316L stainless steel. We offer a variety of impeller styles and sizes to choose from based upon the need of your application.

All wetted parts are finished to 20Ra as standard, with 15Ra and 8Ra polished finishes optional. Passivation and electropolish are also available.

Mounting Options:
