Series B Economy Batch Mixers

Series A and B Mixers

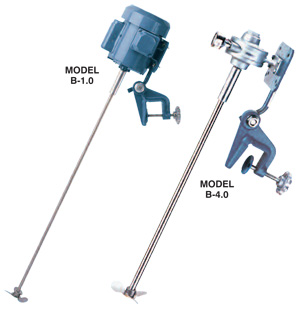

Neptune's economy line of small direct drive mixers for small batches of low viscosity fluids.

Universal motor mount accepts 48 and 56 frame foot mounted motors.
Motors are available in TEFC or explosion-proof enclosures. Air motors also available.
Off-the-shelf delivery.
Shaft and Prop 316SS.
PVC coating available.
Clamp adjusts to any angle.

Model Number	Standard Motor Description	Shaft Length	Shaft Diameter
Totally-Enclosed Fan-Cooled (TEFC)
A-1.0	1/4 HP-1-115	32"	1/2"
B-1.0	1/4 HP-1-115/230	32"	1/2""
B-2.0	1/3 HP-1-115/230	32"	1/2""
B-3.0	1/2 HP-1-115/230	32"	5/8"
B-3.2	1/2 HP-3-230/460	32"	5/8"
Explosion-Proof Class 1 Group D (EP)
B-3.1	1/2 HP-1-115/230	32"	5/8"
Air Motor
B-4.0	1/4 HP to 1/2 HP AIR	35"	5/8"
To Develop: 1/4 HP @ 1725 RPM requires 10 CFM @ 45 PSI 1/3 HP @ 1725 RPM requires 14 CFM @ 60 PSI 1/2 HP @ 1725 RPM requires 18 CFM @ 80 PSI
