Series BN Small Batch Mixer

Series BN Mixers

Neptune’s premier line of small direct drive mixers for mixing small batches of low viscosity fluids.

Mounting ease. Clamp cannot slip, preventing propeller from hitting side of tank.
Quick, easy adjustment between "angled-on-center" and "angled-off-center" positions without tools.
Coupling is fully enclosed.
Motors are available in TEFC or explosion-proof enclosures (56C frame). Air motors also available.
Off-the-shelf delivery.
Shaft and Prop 316SS.
PVC coating available.
Clamp adjusts to any angle.

Model Number	Standard Motor Description	Shaft Length	Shaft Diameter
Totally-Enclosed Fan-Cooled (TEFC)
BN-1.0	1/4 HP-1-115/230	32"	1/2"
BN-2.0	1/3 HP-1-115/230	32"	1/2""
BN-2.2	1/3 HP-3-230/460	32"	1/2""

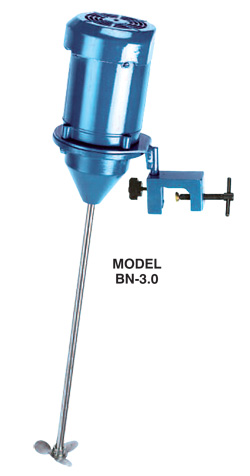

BN-3.0	1/2 HP-1-115/230	32"	5/8"
BN-3.2	1/2 HP-3-230/460	32"	5/8"
Explosion-Proof Class 1 Group D (EP)
BN-2.1	1/3 HP-1-115/230	32"	1/2"
BN-2.3	1/3 HP-3-230/460	32"	1/2"
BN-3.1	1/3 HP-1-115/230	32"	5/8"
BN-3.3	1/3 HP-3-230/460	32"	5/8"
Air Motor
BN-4.0	1/3 HP-1-115/230	32"	5/8"
To Develop: 1/4 HP @ 1725 RPM requires 10 CFM @ 15 PSI 1/3 HP @ 1725 RPM requires 12 CFM @ 20 PSI 1/2 HP @ 1725 RPM requires 22 CFM @ 40 PSI
