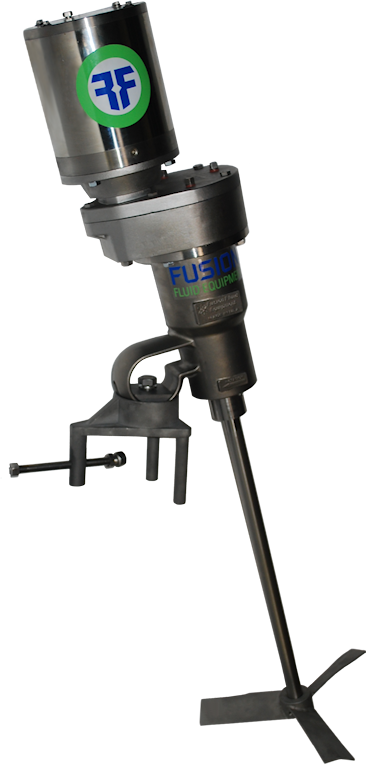

Fusion Fluid Fusion Pro Stainless Steel
Gear Drive Mixer with Clamp Mount
Request Free Information
Fusion Fluid Equipment Mixers and Options

Top quality mixers, made in the USA

Fusion Fluid Equipment is a rapidly growing designer, manufacturer, and supplier of mixers, mixing accessories, and complete agitation systems for various processes for use in industrial, chemical, sanitary, biotech, and pharmaceutical mixing applications.

Fusion Fluid mixers are available in ranges from from 1/10 - 600 HP, and can be configured for top-, side-, and bottom-entry. In addition to their standard mixers, Fusion offers an array of mixer lift stands, ribbon blenders, automated turnkey systems, and mixing impellers to satisfy your application's needs.

With an emphasis on American-made quality, excellent technical support, and fast lead times, Fusion provides reliable mixers backed by people who care about the success of your process. Whether you require standard or custom equipment, Fusion's modern design and manufacturing techniques allows them to confidently handle your projects ranging from simple to complex.

Fusion Fluid Equipment has a full range of fabrication capabilities to efficiently handle any custom order, including:

  • 3D Modeling
  • CNC Machining
  • Laser Cutting
  • Water-jet Cutting
  • Mechanical Forming
  • MIG & TIG Welding
  • Electropolishing
  • Polishing
  • Passivation
  • Coatings

Fusion Fluid Equipment Mixer Series Overview


Pro Mixers

Direct Drive: 1/4 – 5 HP, 1150 – 1750 RPM

Gear Drive: 1/4 – 5 HP, 175 – 350 RPM

Batch Size: 5 to 3,000 gallons

Max. Shaft Length: 120" FMB

Tank Type: Open or Closed

Entry Point: Top Entry

Summary: Portable and Fixed Mount Mixers


Pro Stainless Mixers

Direct Drive: 1/4 – 5 HP, 1150 – 1750 RPM

Gear Drive: 1/4 – 5 HP, 175 – 350 RPM

Batch Size: 5 to 3,000 gallons

Max. Shaft Length: 120" FMB

Tank Type: Open or Closed

Entry Point: Top Entry

Summary: Portable and Fixed Mount, All Stainless Steel Mixers


Axiom Mixers

Direct Drive: Ask Us

Gear Drive: Up to 100 Watts, 20 – 600 RPM

Batch Size: 1 to 100 gallons

Max. Shaft Length: 30" FMB

Tank Type: Closed

Entry Point: Top Entry

Summary: Autoclavable Sanitary Mixers for Small and Medium Batch Sizes


Cirrus Mixers

Direct Drive: 1/4 – 2 HP, 1150 – 1750 RPM

Gear Drive: 1/4 – 2 HP, 175 – 350 RPM; 1/4 – 3/4 HP up to 350 RPM

Batch Size: 5 to 1,000 gallons

Max. Shaft Length: 72" FMB

Tank Type: Closed

Entry Point: Top Entry

Summary: Heavy Duty Sanitary Mixers for Medium Size Batches


Flow Mixers

Direct Drive: N/A

Gear Drive: 1/4 – 100 HP, 3 – 450 RPM

Batch Size: 50 to 1,000,000 gallons

Max. Shaft Length: 360" FMB (30 feet)

Tank Type: Open or Closed

Entry Point: Top or Side Entry

Summary: Large Scale Industrial and Sanitary Gear Drive Mixers


Drum Mixers

Direct Drive: 1/2 – 3 HP, 1150 – 1750 RPM

Gear Drive: 1/2 – 3 HP, 230 – 350 RPM

Batch Size: 55 gallons, typically

Max. Shaft Length: 30" FMB

Tank Type: Open or Closed

Entry Point: Top Entry

Summary: Standard and Custom Drum Mixers


Tote Mixers

Direct Drive: 1/2 – 3 HP, 1150 – 1750 RPM

Gear Drive: 1/2 – 3 HP, 230 – 350 RPM

Batch Size: 275 to 575 gallons, typically

Max. Shaft Length: 36" FMB

Tank Type: Open or Closed

Entry Point: Top Entry

Summary: Standard and Custom Tote Mixers


Specialized Lab Mixers

Direct Drive: 1/10 – 10 HP, 870 – 3600 RPM

Gear Drive: 1/10 – 10 HP, 4 – 500 RPM

Batch Size: As Required

Max. Shaft Length: 36" FMB

Tank Type: Open or Closed

Entry Point: Top Entry

Summary: Custom Laboratory Mixers
