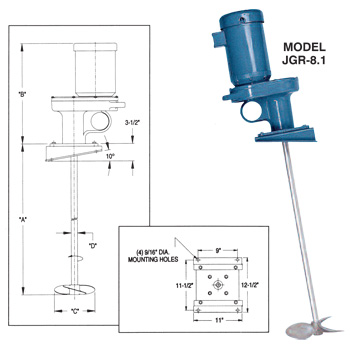

 Series JGR Angle-Mount Mixer
Series JGR Angle-Riser Mount Mixers
Gear Drive Mixer, Heavy Helical Gear, 350 rpm, Grease Lube
Series JGR mixers provide all the features of Series JG gear drive mixers, but with alternate angle-riser mounts.
- Angle-riser mount provides a fixed 10° angle of entry.
Flange Mount
Model Number |
Standard Motor Description |
A
Shaft Length |
B
|
C |
D
Shaft Diameter |
| Single |
Dual |
| Totally-Enclosed Fan-Cooled (TEFC) |
| JGR-2.0 |
1/3 HP-1-115/230 |
48" |
17 5/8" |
10" |
8" |
3/4" |
| JGR-2.1 |
1/3 HP-3-230/460 |
48" |
17 3/8" |
10" |
8" |
3/4" |
| JGR-3.0 |
1/2 HP-1-115/230 |
48" |
18 1/2" |
12" |
10" |
3/4" |
| JGR-3.1 |
1/2 HP-3-230/460 |
48" |
17 5/8" |
12" |
10" |
3/4" |
| JGR-4.0 |
3/4 HP-1-115/230 |
60" |
18 3/4" |
13" |
11" |
3/4" |
| JGR-4.1 |
3/4 HP-3-230/460 |
60" |
18 1/8" |
13" |
11" |
3/4" |
| JGR-5.1 |
1 HP-3-230/460 |
60" |
18 3/8" |
14" |
12" |
1" |
| JGR-6.1 |
1 1/2 HP-3-230/460 |
60" |
18 3/4" |
15" |
13" |
1" |
| JGR-7.1 |
2 HP-3-230/460 |
60" |
20 5/8" |
16" |
14" |
1 1/4" |
| JGR-8.1 |
3 HP-3-230/460 |
72" |
21 5/8" |
16" |
15" |
1 1/4" |
| JGR-9.1 |
5 HP-3-230/460 |
72" |
23" |
16" |
15" |
1 1/4" |
| Explosion-Proof Class 1 Group D (EP) |
| JGR-2.2 |
1/3 HP-1-115/230 |
48" |
20 1/2" |
10" |
8" |
3/4" |
| JGR-2.3 |
1/3 HP-3-230/460 |
48" |
17 3/8" |
10" |
8" |
3/4" |
| JGR-3.2 |
1/2 HP-1-115/230 |
48" |
21" |
12" |
10" |
3/4" |
| JGR-3.3 |
1/2 HP-3-230/460 |
48" |
19 5/8" |
12" |
10" |
3/4" |
| JGR-4.2 |
3/4 HP-1-115/230 |
60" |
21 1/2" |
13" |
11" |
3/4" |
| JGR-4.3 |
3/4 HP-3-230/460 |
60" |
19 5/8" |
13" |
11" |
3/4" |
| JGR-5.3 |
1 HP-3-230/460 |
60" |
20 1/2" |
14" |
12" |
1" |
| JGR-6.3 |
1 1/2 HP-3-230/460 |
60" |
20 1/2" |
15" |
13" |
1" |
| JGR-7.3 |
2 HP-3-230/460 |
60" |
22 1/8" |
16" |
14" |
1 1/4" |
| Air Motor |
| JGR-3.4 |
1/3 - 1/2 HP AIR
12-20CFM @ 40-80PSI |
48" |
17 1/8" |
12" |
10" |
3/4" |
| JGR-4.4 |
3/4 HP AIR
30CFM @ 60PSI |
60" |
18" |
13" |
11" |
3/4" |
| JGR-5.4 |
1 HP AIR
40CFM @ 40PSI |
60" |
19 1/8" |
14" |
12" |
1" |
| JGR-6.4 |
1 1/2 HP AIR
55CFM @ 60PSI |
60" |
19 1/8" |
15" |
13" |
1" |
| JGR-7.4 |
2 HP AIR
65CFM @ 70PSI |
60" |
15 5/8" |
16" |
14" |
1 1/4" |
| JGR-8.4 |
4 HP AIR
125CFM @ 90PSI |
72" |
16 3/4" |
16" |
15" |
1 1/4" |
| Variable Speed 35 to 350 RPM Totally-Enclosed Fan-Cooled (TEFC)* |
| JGR-2.7 |
1/3 HP Variable Speed, 1/115 V |
48" |
17 5/8" |
10" |
8" |
3/4" |
| JGR-3.7 |
1/2 HP Variable Speed, 1/115 V |
48" |
18 1/2" |
12" |
10" |
3/4" |
| JGR-4.7 |
3/4 HP Variable Speed, 1/115 V |
60" |
18 3/4" |
13" |
11" |
3/4" |
| JGR-5.7 |
1 HP Variable Speed, 1/115 V |
60" |
18 3/8" |
14" |
12" |
1" |
| * Using AC motor/control package. |
|
|
|
|
|
|
