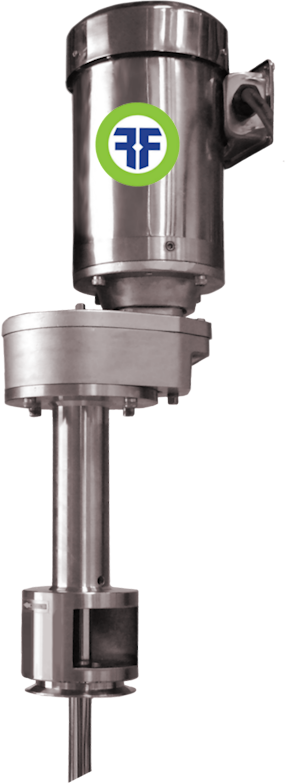

Fusion Fluid Cirrus Mixer with
Electric Motor and TriClamp Mount
Request More Information
Fusion Fluid Cirrus Sanitary Mixers

Medium-Batch Stainless Sanitary Mixers

These heavy-duty, all-stainless-steel sanitary mixers are designed to meet your sanitary requirements for medium-sized batches, or in applications where higher pressures exist.

Specifications:

Direct Drive: 1/4 – 2 HP, 1150 – 1750 RPM

Gear Drive: 1/4 – 3/4 HP, Up to 350 RPM

Batch Size: 5 to 1,000 gallons

Max. Shaft Length: Up to 72" FMB

Tank Type: Closed

Entry Point: Top Entry

Features and Benefits:

Stainless steel sanitary mixers for top entry configurations with sealed tanks.

Mixer-duty electric and air powered motors are available with a wide variety of sizes, phases, and voltages. Special motor features include washdown duty, explosion proof, DC electric, inverter duty, and many more.

A complete line of stainless steel gearboxes and accessories are available to match your application's needs.

Sanitary mixer designs utilize 300 series stainless steel housings with dual bearings allowing reduced vibrations and longer shaft lengths (up to 72" FMB). Housings provide easy access and quick maintenance of seal components.

Various seal options include FDA Rulon, EPDM, and Viton lipseals, mechanical seals and more. These availabilities help to address any special demands of your application.

All wetted parts are standard in 316L stainless steel with passivation and electropolish available. A variety of impeller styles, sizes and coatings are available based upon the need of your application.

Mounting Options:

ANSI Flange Mount TriClamp Mount
