Lightweight, rugged, and made in the USA

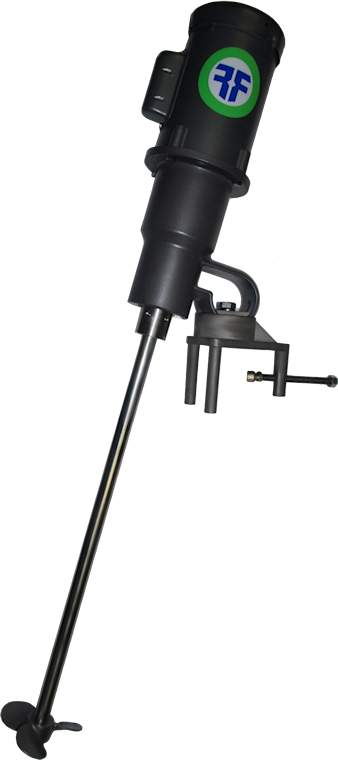

Fusion Fluid's Fusion Pro series of mixers feature a one-piece, investment-cast aluminum bearing housing containing two oversize bearings for high performance and a long service life.

Specifications:

Direct Drive: 1/4 – 5 HP, 1150 – 1750 RPM

Gear Drive: 1/4 – 5 HP, 175 – 350 RPM

Batch Size: 5 to 3,000 gallons

Max. Shaft Length: 120" FMB

Tank Type: Open or Closed

Entry Point: Top Entry

Features and Benefits:

Available to fit top entry configurations in open or closed tanks.

Mixer-duty electric motors are available in a variety of sizes, phases, and voltages, chosen based on your need. Washdown duty and explosion-proof motors are optional. Air motors are also available.

A complete line of gearboxes and accessories provides a wide range of mixing speeds to match your application. Gear drive units come standard with synthetic lubrication (lubed for life).

Fusion Pro's unique one piece, aluminum investment-cast bearing support housing is available with an integrated ball and socket for clamp mount applications, or with an integral flange for sealed and beam mount applications. The ball and socket style clamp mounts provide portability and flexibility, while giving a wide range of adjustability that allows for optimal positioning.

The dual bearing design provides added strength and durability. Fusion Pro series mixers are very easy to maintain – they can be disassembled and re-assembled in just minutes.

Sealed tank configurations can be achieved through the use of various lipseals, high pressure stuffing boxes, and assorted mechanical seals.

All mounting components are 300 series stainless steel. Wetted components are standard in 316L stainless steel.

Mounting Options:
