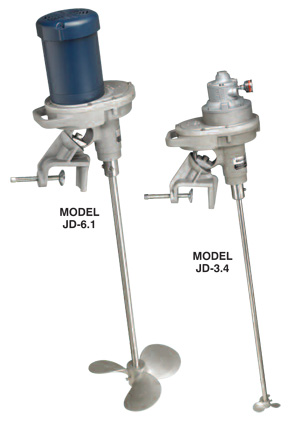

TEFC (left) and Air Drive (right)
Neptune Mixer Co. Logo

Series JD Mixers

Direct Drive Mixer, Clamp or Cup Plate Mount, 1750 RPM, Grease Lube

This mixer was designed to meet the need for a large direct-drive mixer with a housing that cannot leak oil.

Features:

  • Square pitch 1.0 ratio marine propellers are used exclusively. Flow coefficients and power consumption characteristics equal those of the best hydrofoil impeller designs.
  • 316SS propellers and shafts are standard. Optional coatings such as rubber, PVC or Teflon also available.
  • JD mixers have adjustable angles of entry by indexed ball-and-socket design to achieve different process results.
  • Motors are available in TEFC or explosion-proof enclosures (1750 rpm, 56C frame). Air motors also available.
  • Vibration-absorbing pad standard.
  • All JD mixer shaft bearings are permanently lubricated.
  • Variable speed drives also available.
  • Cast aluminum housing.
  • Fixed cup plate mount optional.

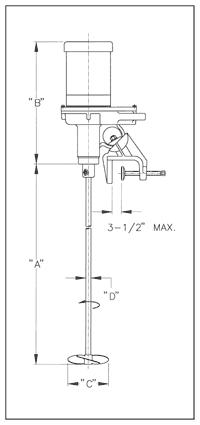

Model Number Standard Motor Description A
Shaft Length
B

C D
Shaft Diameter
Single Dual
Totally-Enclosed Fan-Cooled (TEFC)
JD-2.0 1/3 HP-1-115/230 36" 21 1/8" 4" 4" 3/4"
JD-2.1 1/3 HP-3-230/460 36" 20 3/4" 4" 4" 3/4"
JD-3.0 1/2 HP-1-115/230 48" 22" 5" 4" 3/4"
JD-3.1 1/2 HP-3-230/460 48" 21 1/8" 5" 4" 3/4"
JD-4.0 3/4 HP-1-115/230 48" 22 1/4" 5" 4" 3/4"
JD-4.1 3/4 HP-3-230/460 48" 21 1/2" 5" 4" 3/4"
JD-5.1 1 HP-3-230/460 60" 21 3/4" 6" 5" 1"
JD-6.1 1 1/2 HP-3-230/460 60" 22 1/4" 6" 5" 1"
JD-7.1 2 HP-3-230/460 60" 23 1/2" 7" 6" 1"
Explosion-Proof Class 1 Group D (EP)
JD-2.2 1/3 HP-1-115/230 36" 24" 4" 4" 3/4"
JD-2.3 1/3 HP-3-230/460 36" 20 3/4" 4" 4" 3/4"
JD-3.2 1/2 HP-1-115/230 48" 24 1/2" 5" 4" 3/4"
JD-3.3 1/2 HP-3-230/460 48" 23 1/8" 5" 4" 3/4"
JD-4.2 3/4 HP-1-115/230 48" 25" 5" 4" 3/4"
JD-4.3 3/4 HP-3-230/460 48" 23 1/8" 5" 4" 3/4"
JD-5.3 1 HP-3-230/460 60" 24" 6" 5" 1"
JD-6.3 1 1/2 HP-3-230/460 60" 24" 6" 5" 1"
JD-7.3 2 HP-3-230/460 60" 25 1/2" 7" 6" 1"
Air Motor
JD-3.4 1/3 - 1/2 HP AIR
Air Requirements:
12-20CFM @ 40-80PSI
48" 16 1/2" 5" 4" 3/4"
JD-4.4 3/4 HP AIR
Air Requirements:
30CFM @ 60PSI
48" 17 3/8" 5" 4" 3/4"
JD-5.4 1 HP AIR
Air Requirements:
40CFM @ 40PSI
60" 18 1/2" 6" 5" 1"
JD-6.4 1 1/2 HP AIR
Air Requirements:
55CFM @ 60PSI
60" 18 1/2" 6" 5" 1"
JD-7.4 2 HP AIR
65CFM @ 70PSI
60" 18 1/2" 7" 6" 1"
