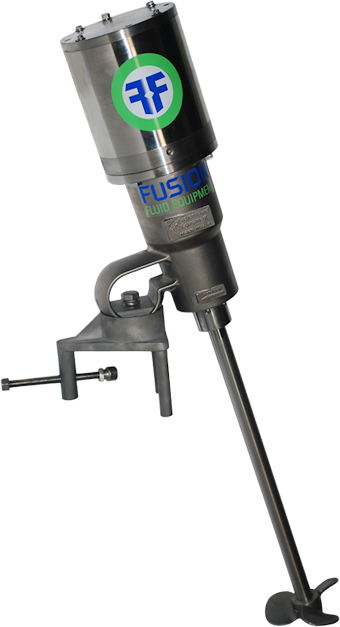

Fusion Fluid Fusion Pro Stainless Steel
Direct Drive Mixer with Clamp Mount
Request More Information
Fusion Fluid Fusion Pro Series All-Stainless Mixers

Lightweight, rugged, made in the USA ...
and all-stainless

This series is an all-stainless-steel version of Fusion Fluid's Fusion Pro line of mixers. Like its aluminum counterpart, the Fusion Pro Stainless series features a one-piece, investment-cast bearing housing containing two oversize bearings – which provide high performance and a long service lfe – but this one's cast 300 series stainless.

Specifications:

Direct Drive: 1/4 – 5 HP, 1150 – 1750 RPM

Gear Drive: 1/4 – 5 HP, 175 – 350 RPM

Batch Size: 5 to 3,000 gallons

Max. Shaft Length: 120" FMB

Tank Type: Open or Closed

Entry Point: Top Entry

Features and Benefits:

Available to fit top entry configurations in open or closed tanks.

Stainless steel, washdown-duty electric motors are available in a variety of sizes, phases, and voltages, chosen based on your need. Explosion-proof motors and air motors are also available.

A complete line of stainless steel gearboxes and accessories provides a wide range of mixing speeds to match your application. Gear drive units come standard with H1 grade sanitary synthetic lubrication (lubed for life).

Fusion Pro Stainless' unique one piece, 300 series stainless steel investment-cast bearing support housing is available with an integrated ball and socket for clamp mount applications, or an integral flange for sealed and beam mount applications. The ball and socket style clamp mounts provide portability and flexibility, while giving a wide range of adjustability that allows for optimal positioning.

The dual bearing design provides added strength and durability. Fusion Pro series mixers are very easy to maintain; they can be disassembled and re-assembled in just minutes.

Sealed tank configurations can be achieved through the use of FDA-compliant lipseals, high pressure stuffing boxes, and assorted mechanical seals.

All mounting components are 300 series stainless steel. Wetted components are standard in 316L stainless steel.

Mounting Options:

Cup Mount Clamp Mount Plate Mount Plate Mount with
Angle Risers
ANSI Flange Mount TriClamp Mount
